Electric Truck Air Conditioner for Cabins and Motorhome P-20B
Electric truck air condtioner P-20B is powered by DC battery , roof mounted , it is suit for truck/trailer/tractors' cabin and motorhome . 12V/24V Battery-powered truck A/C design for keep cabin cooling without idling engine when parking .
Share With:
Product Description

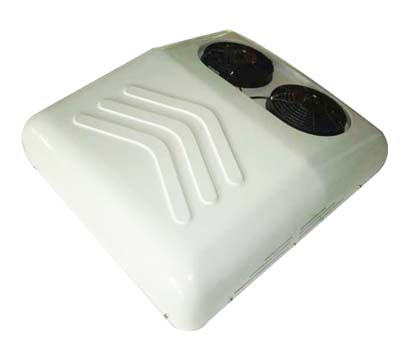

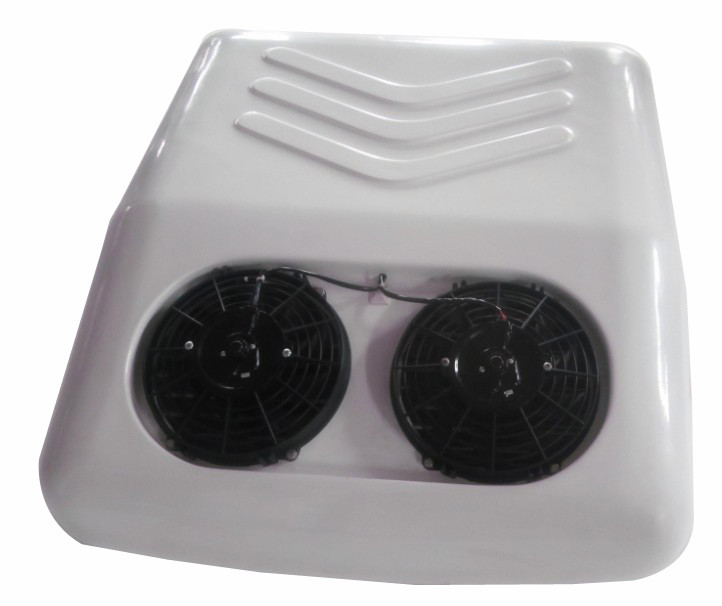

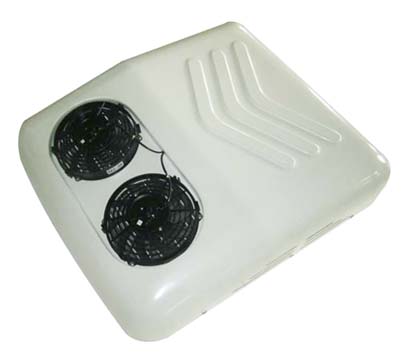

P-20B Electric Truck Air Conditioner for Cabins and Motorhome:

Cab parking cooling , no need to intervene in the vehicle engine,solution by P-Trip

The electric truck air conditioner P-20B with roof mounted , it is electric ac unit and driven by the battery of truck , suit for truck , trailer , excavator , caravan and rv. We produce is generally 15 degrees ,and the most comfortable temperature for the human body in an air-conditioned environment is 25 degrees. So please don't worry the well application of the dc powered truck air conditioner under harsh environment .

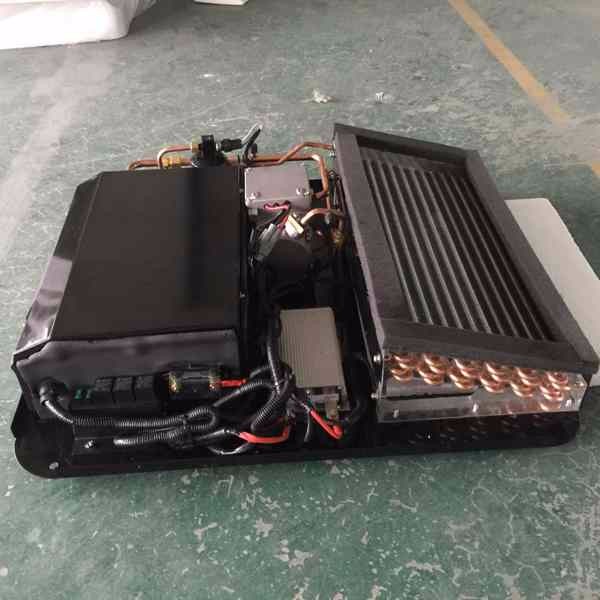

P-20B is powered by DC battery , with electric compressor packed in the roof unit . Easily be installed (within one hour) , no need to install the compressor near by the vehicle engine . After engine stopped working , the AC unit can work 3-4 hours continuously . It received praise from customers around the world, especially construction machine with P20B air conditioner can work under 50 Deg. C ambient temperature .

DC Powered Roof Mounted Electric Truck Air Conditioner:

Advantages of DC Powered Roof Mounted Electric Truck Air Conditioner:
♦ Roof Top mounted design
♦ Fuel Saving , Environment Friendly .
♦ The air conditioner can be installed in any vehicle that has a closed cabin .
♦ Low cost and low maintenance start from high-quality interior components and unique technique we take.


Technical Data of DC Powered Air Conditioner :

Model

P-20B

Installation

Roof top mounted

Cooling Capacity

2000W

Driven Mode

Battery driven

Voltage

DC12V

DC24V

Total current (A)

60A

30A

Evaporator Air Flow

900 m3/h

Condenser Air Flow

2000 m3/h

Compressor

Electric compressor 15cc

Dimension

900*795*200mm

Pressure Protection

High Pressure

2.65MPa

Low pressure

0.02MPa

Refrigerant

R134a

Application

Truck, Trailer, Motor home , Caravan, Construction Vehicle , Tour Vehicle
